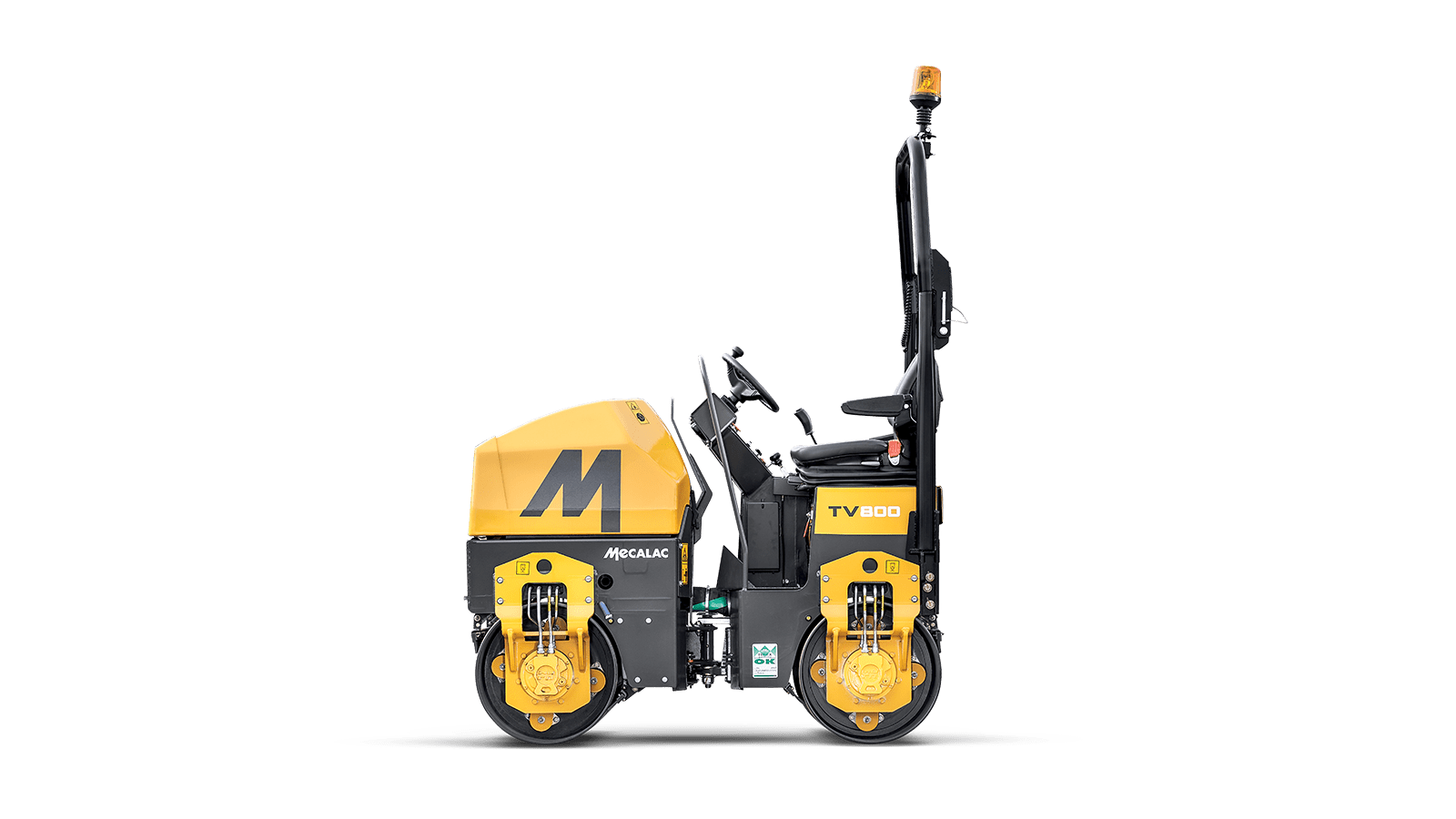

Tandem Vibratory Rollers TV800

TV800

Arguably some of the toughest in the world, the Mecalac range of compact Tandem Rollers are designed for the rigorous demands of the Plant Hire industry. With an 800mm drum the TV800 is the smallest in the range of tandem drum rollers, perfect  for small jobsites. Optional hydraulic breaker outlet provides 30L/min flow rate (Category 2), removing the need for an additional powerpack or compressor on site, further increasing the versatility of this compact model.

Specifications

Engine Power (kW/hp)17,5 kW (23 hp)
Total operating weight1559 kg (3,437 lb)
Turning circle5640 mm (18’6”)
Travel speed8 km/h (4.9 mph)
Overall width870 mm (2’10”)
Overall length1860 mm (6’1”)
Drum width800 mm (2’7”)
Centrifugal force1000/1250 daN (2,248/2,810 lbf)
Frequency46/52 Hz (2,760/3,120 VPM)
Static linear Load9,7 kg/cm (54.3 lb/inch)
Amplitude0,5 mm (0’019”)
