Revotruck 9

Revolution in
a 9-Ton Payload
Edition

The Revotruck 9 is the expression of this game-changing revolutionary design in a 9-ton payload version.


Mecalac has created the Revotruck, a unique piece of engineering that combines the revolution of the cab with off-road truck capabilities. Operators can now rotate the entire cab at the touch of a button to keep their vision and focus on the job and obstacles on site. The exclusive chassis with central oscillation ensures stability and traction in all ground conditions.

Together with extreme ease of use and accessibility, the Revotruck makes material transport smarter and safer.

While maintaining the innovative Mecalac features and leveraging the extensive expertise from the site dumper manufacturing and market, the  Revotruck 9 not only provides an increased payload capacity of up to 9 tons (19,841 lbs) but also embodies the concentrated excellence observed in the 6-T version.

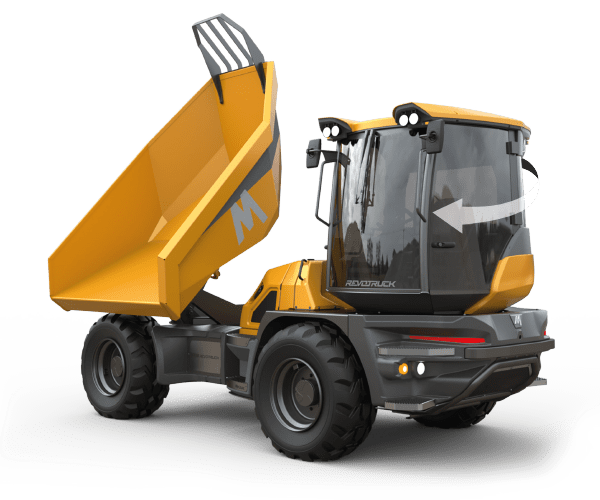

360°

Visibility

Revotruck
Switch to Visibility

Revolution of the cab

Eyes and mind on the task

Getting the best view over the work without having to manoeuvre is now possible with the fully rotating cab of the Revotruck. Unlike existing solutions that offer limited two-way views, the infinite cab positions of the Revotruck open up visibility in all directions, allowing maximum concentration of the drivers on the job and surrounding elements (workers, machines..).

We have not only created the Revotruck to revolutionize the way to work with a dumper, we have done it to enhance operators’ safety and well-being.

Revotruck
Switch to Safety

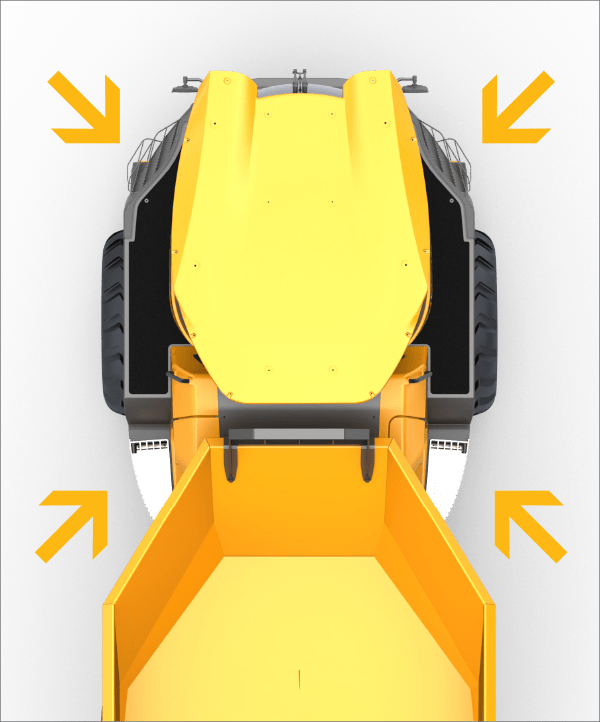

Accessibility

Revolution is all-around

Our challenge was to provide unrestricted access to the Revotruck to enhance site dumper safety and ergonomics. We have overcome this challenge by designing the chassis around the cabin with large access to each corner of the driver’s station.

Therefore, access to the Revotruck is always safe and effortless.

All-around access

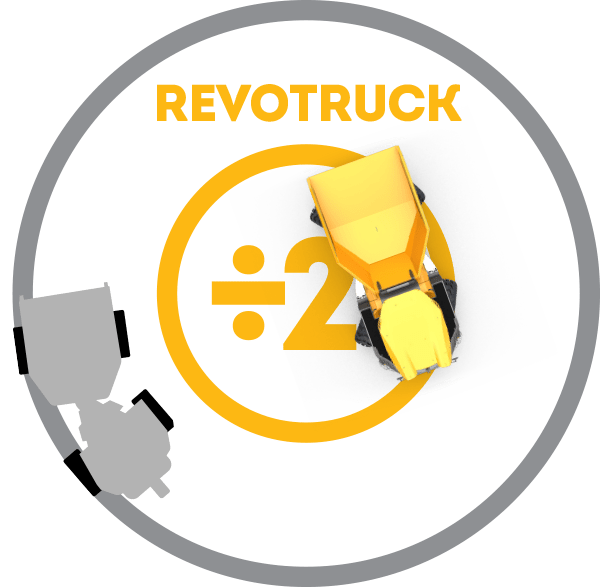

Articulated dumper

Articulated dumper

Revolution in its body

The unique chassis of the Revotruck is completed by four equally sized wheels with a switchable steering mode (front steering, all-wheel steering and crab steering) that opens up possibilities for working with superior agility in the tightest spaces and with the tightest turning radius of the market.

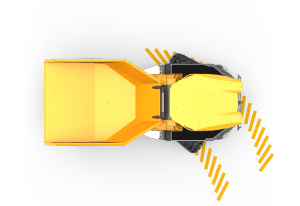

2 Wheel Steering

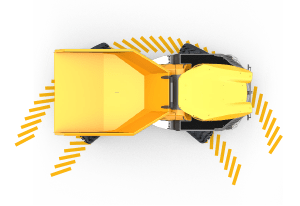

4 Wheel Steering

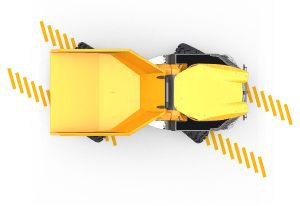

4 Wheel crab steering

Videos

Specifications

Total operating weight6565 kg (14,473 lbs)
Engine power55 kW (74 hp)
Skip typeSwivel
Payload9000 kg (19,842 lbs)
Maximum skip capacity (Heaped)4,5 m3 (5.9 yd3)
TransmissionHydrostatic
Travel speed28kph (17.4mph)
Operator environmentROPS / FOPS Rotating Cab 225°
Overall width2412 mm (7’11’’)
Overall length5270 mm (17’3’’)
Overall height2856 mm (9’4’’)
Dumping height, skip tipped1117 mm (3'8'')
