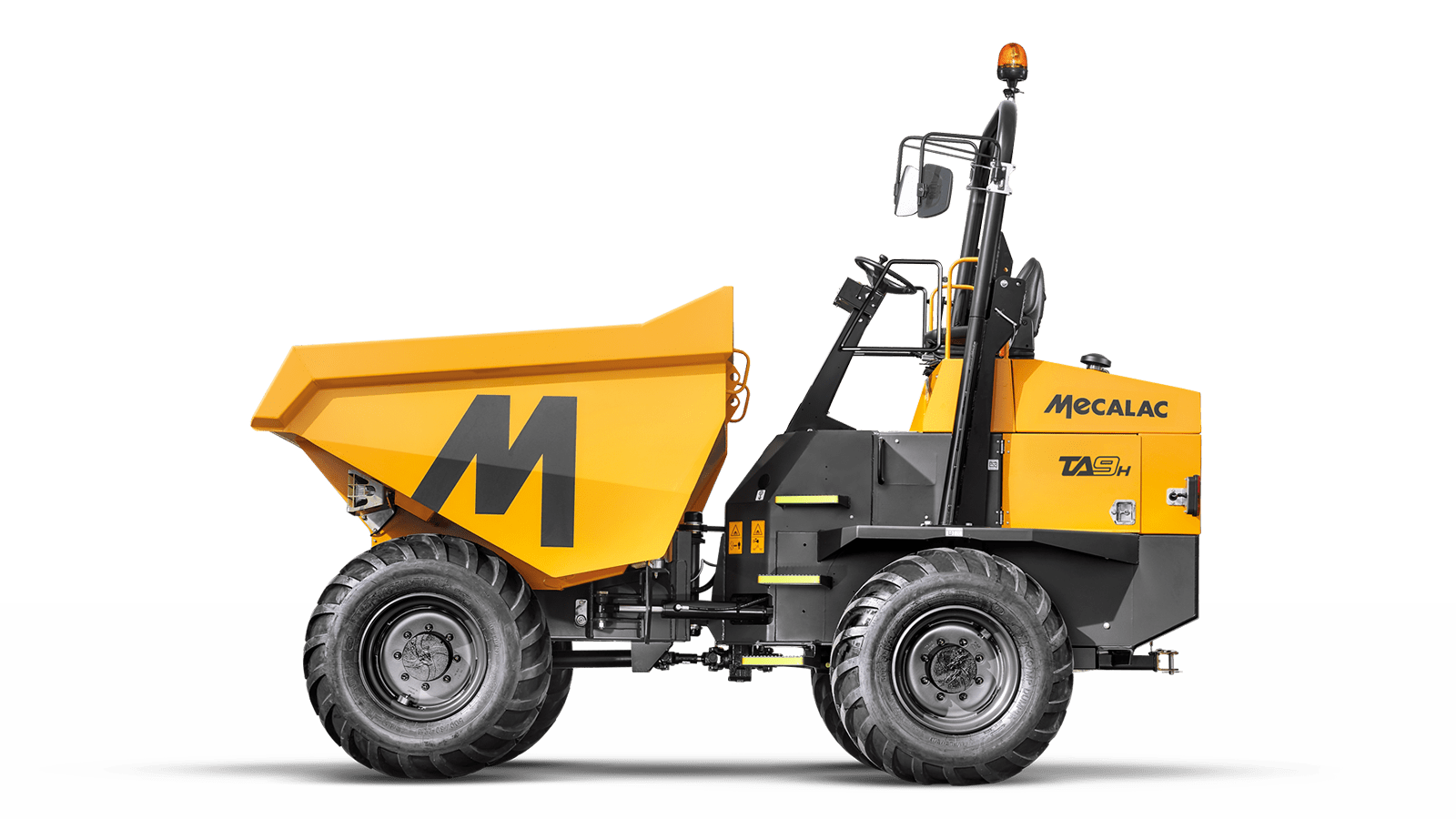

TA - 6 to 9 tons
High performance, high output

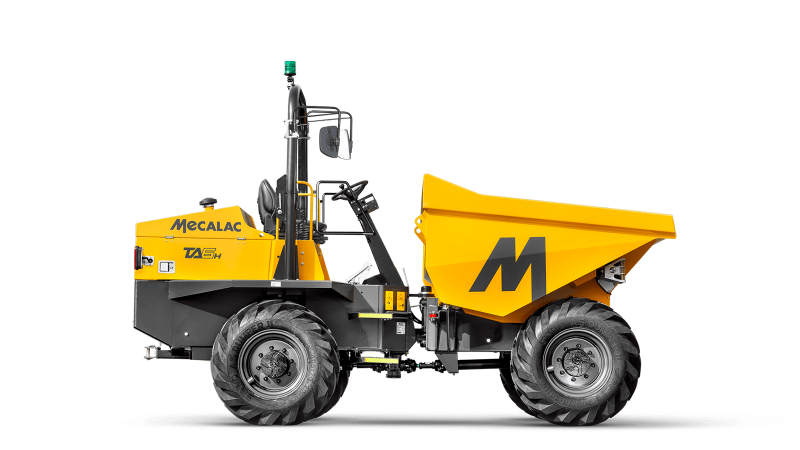

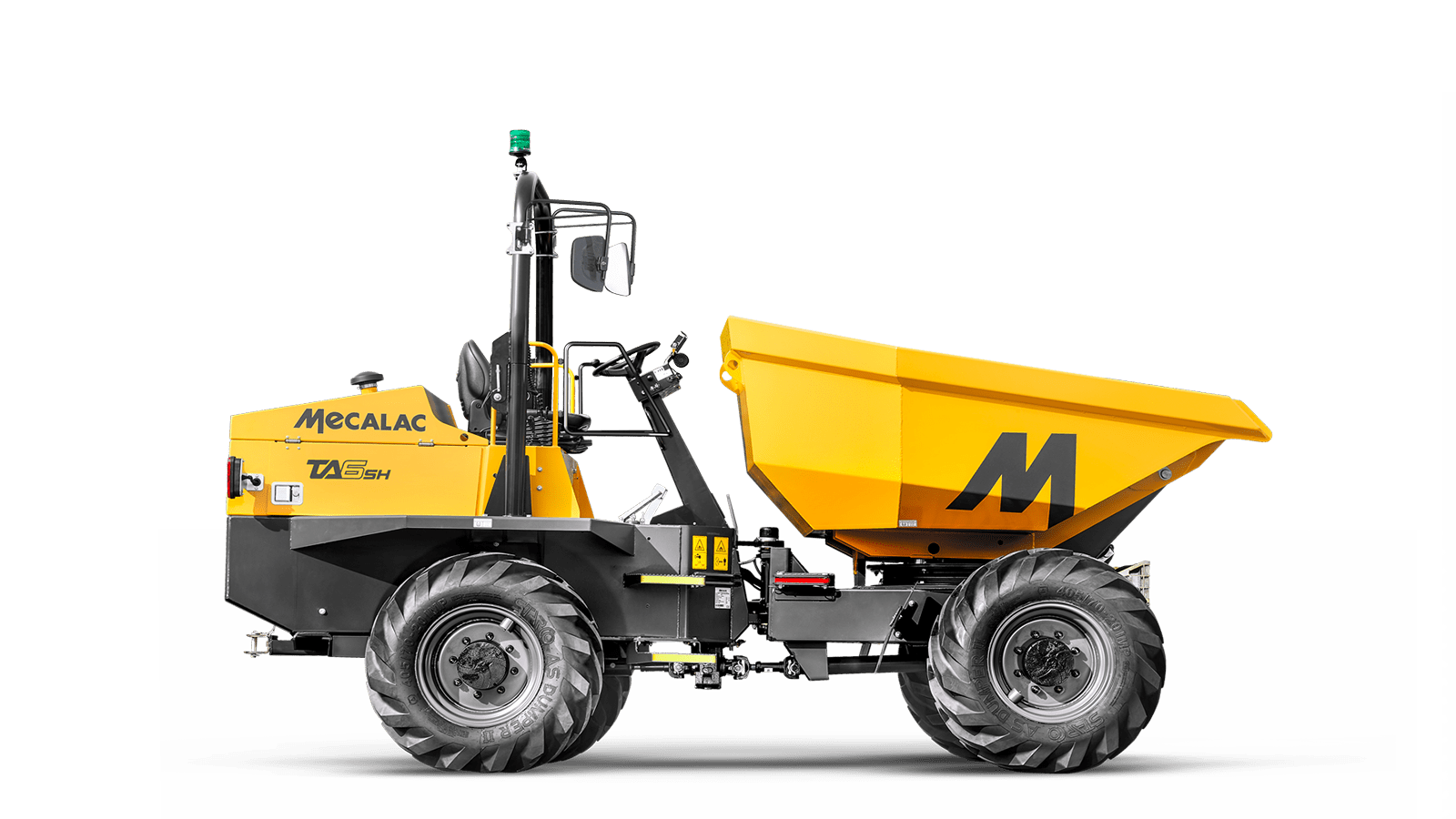

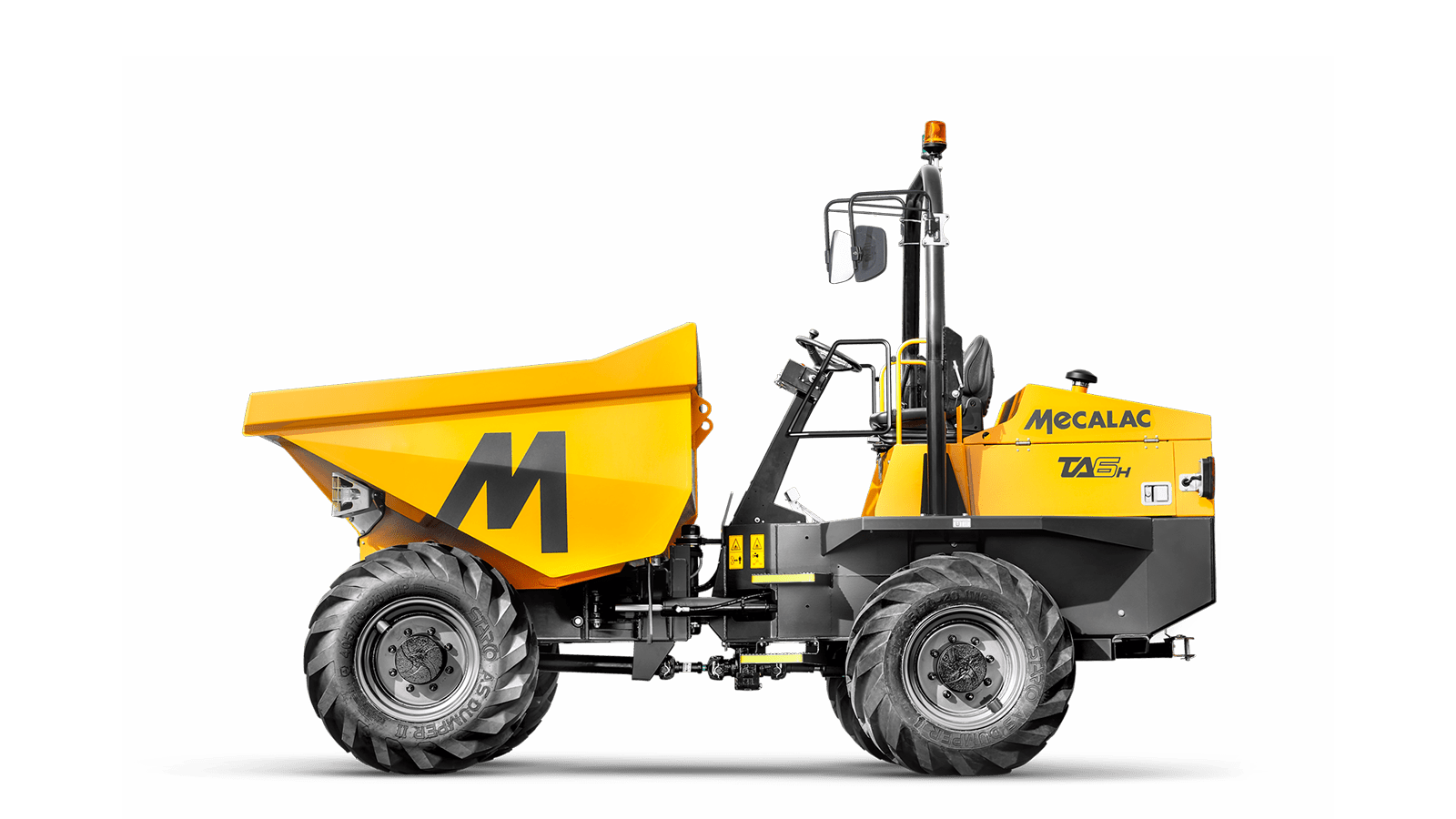

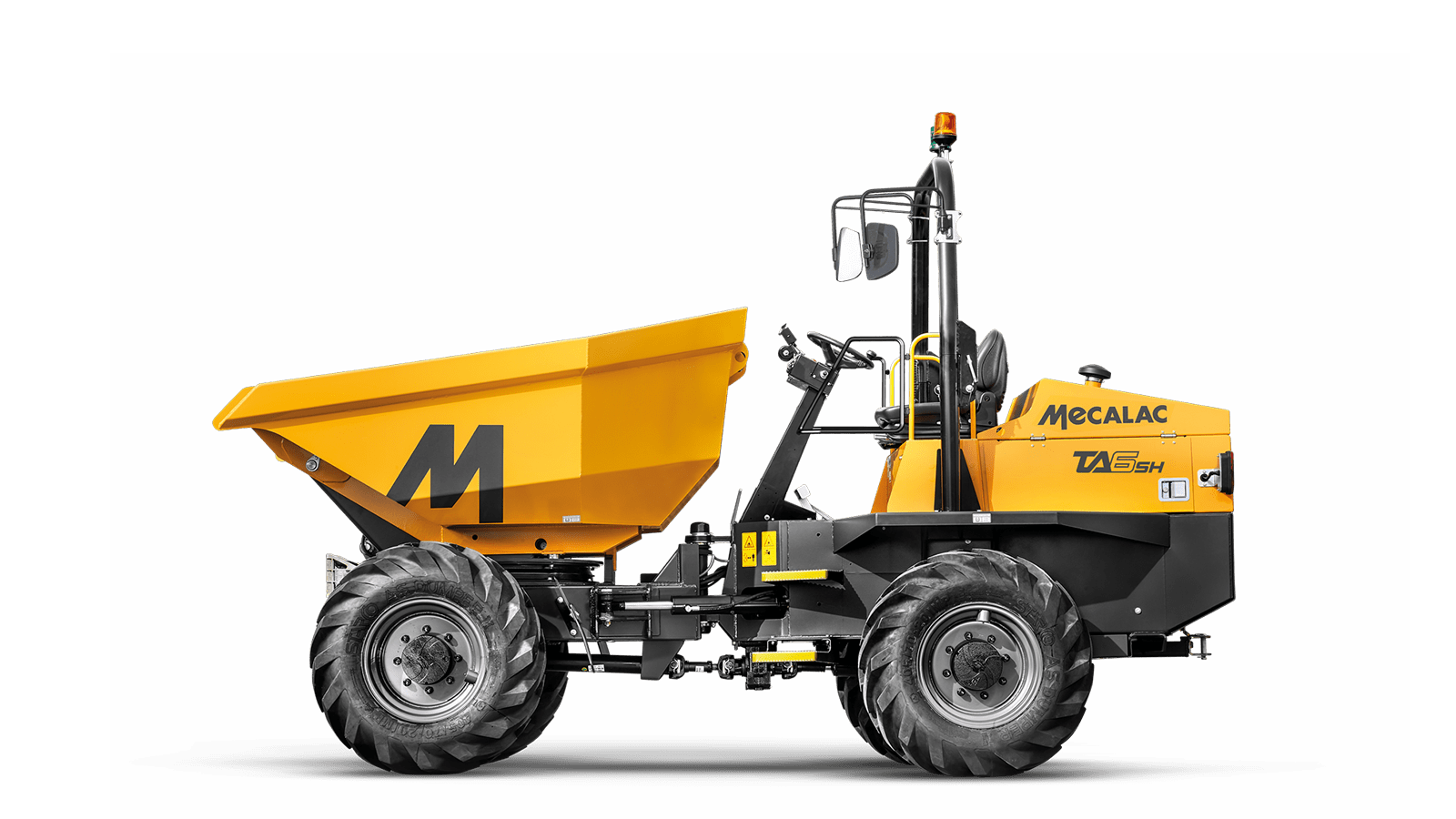

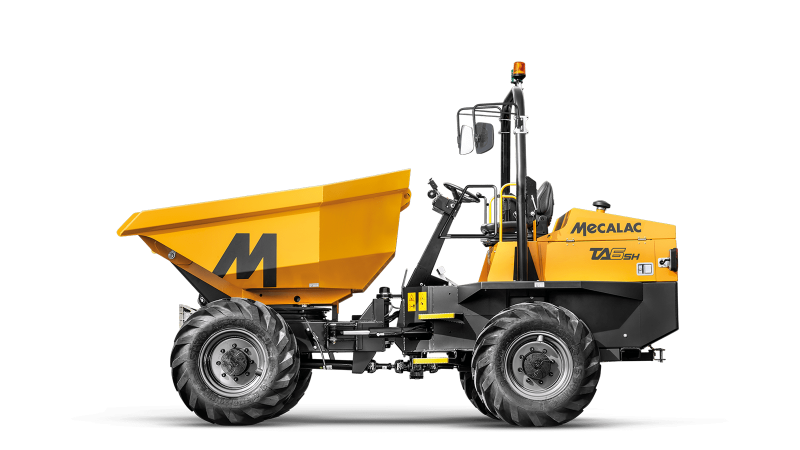

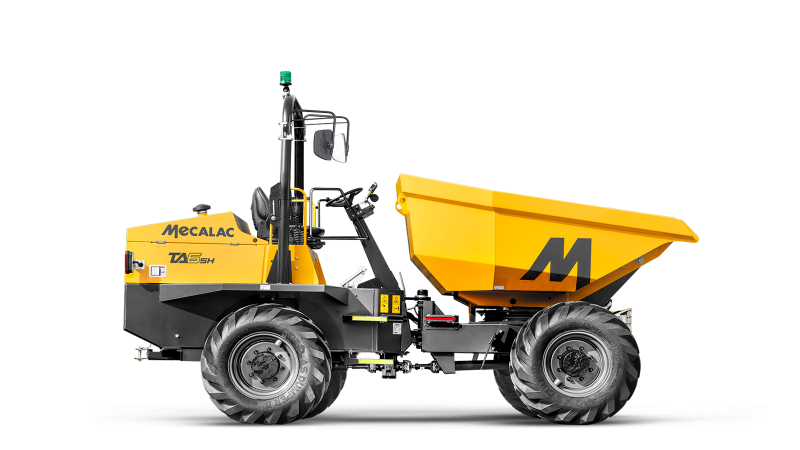

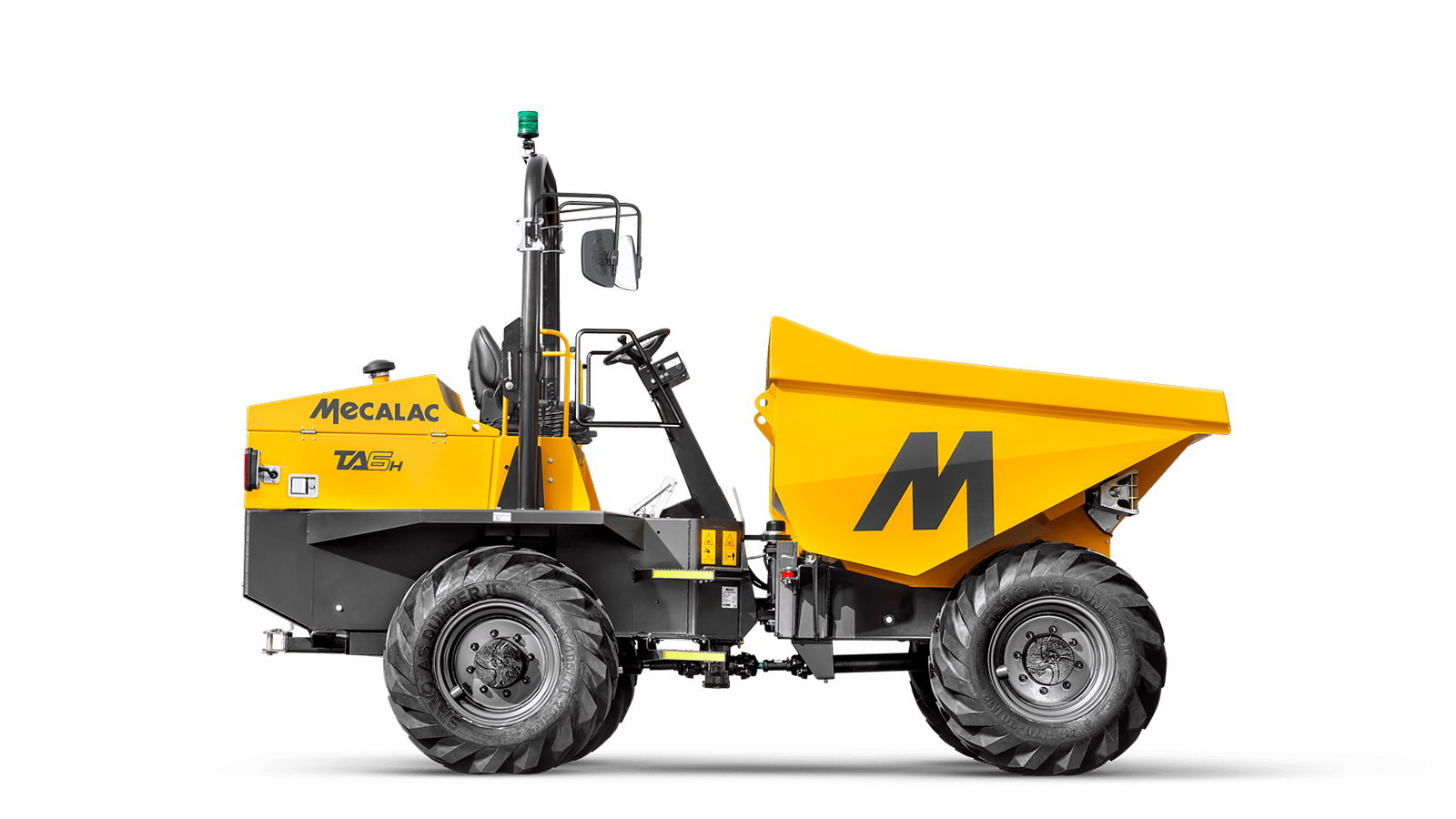

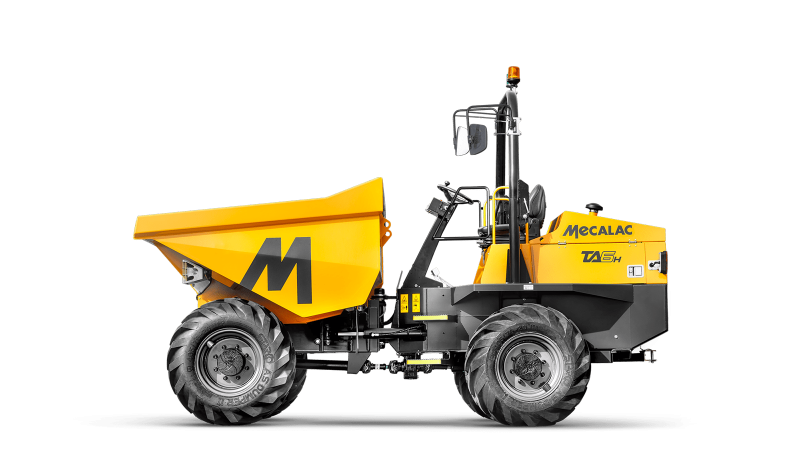

Designed for the medium to large job site the 55kw (74hp) engine powered TA6 offers versatility for your material movement. With a skip payload of 6000kg, choose between straight tip skip for bulk material movement or the 180 degree power swivel skip which allows precision placement of loads to either side of the machine. A synchro shuttle transmission provides 4 forward and 4 reverse gears with a maximum travel speed of 25kph (15mph), permanent 4 wheel drive and central articulation ensure traction is maintained in even the toughest conditions. All 6 tonne machines now feature Shield safety technology as standard with an option to upgrade to Shield plus for additional safety technology.
TA6 in action
Specifications
| Total operating weight | 4145 kg (9138 lb) to 4345 kg (9579 lb) | |
|---|---|---|
| Engine power | 55 kW (74hp) | |
| Skip type | Front / Swivel | |
| Payload | 6000 kg (13228 lb) | |
| Maximum skip capacity (Heaped) | 2,9 m³ (3,8 yd³) to 3,1 m³ (4,1 yd³) | |
| Transmission (Road) | Hydrostatic | |
| Travel speed | 25 km/h (15 mph) | |
| Operator environment | ROPS foldable bar with Side Protection Gates | |
| Overall width | 2300 mm (7’7”) to 2211 mm (7’3”) | |
| Overall length | 4386 mm (14'5") to 4644 mm (15'3") | |
| Overall height | 2910 mm (9'7") | |
| Dumping height, skip tipped | 431 mm (1’5”) to 1127 mm (3’8”) |
