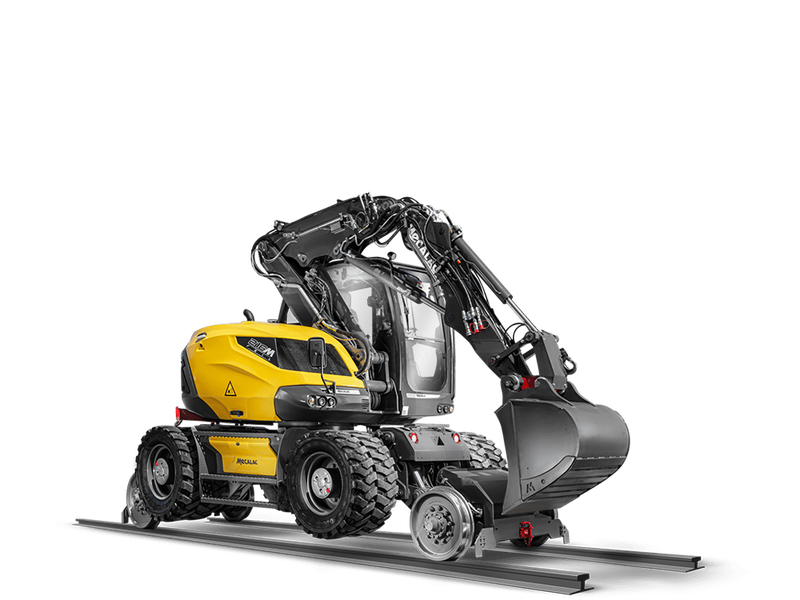

Rail-Road Excavators 216MRail

216MRail

The strongest machine for the toughest jobs

Strong machines to complete all the hard tasks in a minimum of time but also with a maximum of constraints around. If you don’t want to jeopardize your maneuvrability and agility against force, then the 216MRail is made for you. The 216MRail excavator is here to offer you a new alternative: that of agile strength, to give you the freedom of movement you are longing for.

Boost your performance

An innovative design that preserves forces.

  • Balanced by nature
  • Outstanding lifting capacities
  • Hydrostatic rail transmission

Save on excesses

The right investment

  • The warranty above all
  • Reduced operating costs
  • Ease of service
216MRail

Gain in agility, gain in safety

Smaller overall dimensions free up mobility.

  • Direct visibility at 360°
  • Purpose-built boom kinematics for rail applications
  • Agility and maneuverability

Innovate = simplify!

The end of complex systems

  • No more complex screens and settings

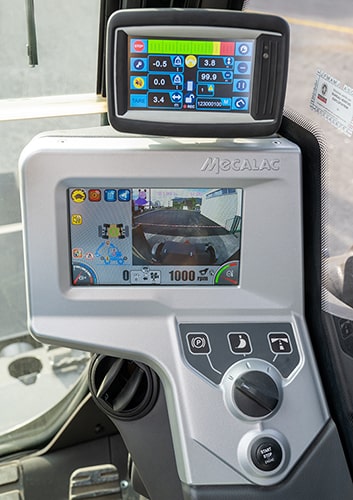

  • Machine - operator interface

216MRail in action

Videos

Features

Total operating weight20 350 kg (44,860 lbs)
Heavy counterweight4700 kg (10,362 lbs)
Overall width2541 mm (8'4")
Tail swing radius1571 mm (5'2")
Front cab swing radius (left)1651 mm (5’5’’)
Travel speed30 kph (18,5 mph)
Travel speed (Rails)30 kph (18,5 mph)
Engine power (kW/hp)100 kW (136 hp/PS)
TransmissionHydrostatic, 4-steering wheels

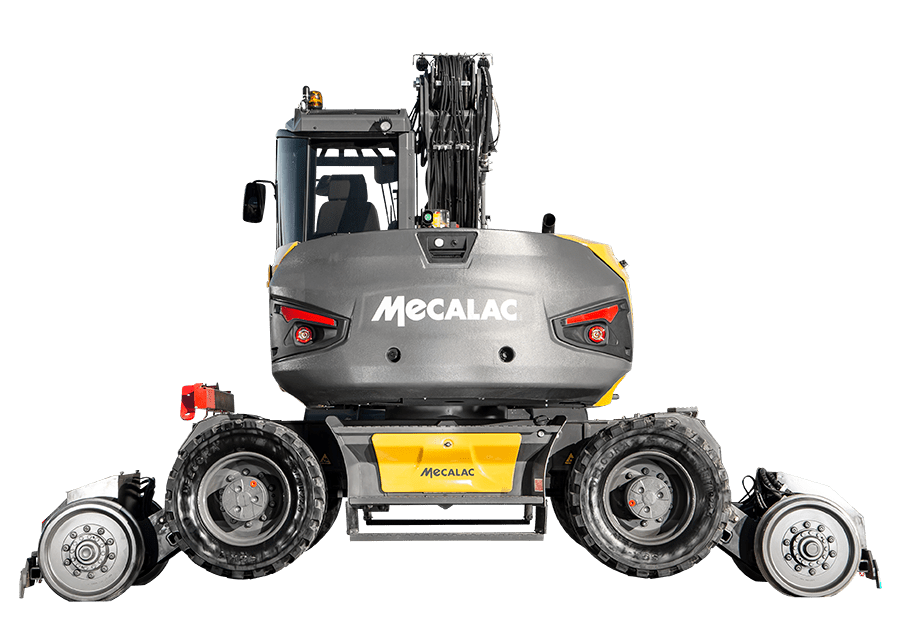

Transmission (rail)Hydrostatic, 4x Ø 630 mm (24,8 in) rail wheels, UIC profile
Lift capacity @ Max HeightMax at a 3 m (9’10’’) distance, 3 m (9’10’’) height on rails - aligned: 8000 kg (17,640 lbs)
Max. reach under 4,28 m (14’) high catenaries5757 mm(18’11’’) / 3723 mm (12’2’’)
Wheelbase (Rail wheels)4700 mm (15’5’’)
Pneumatic Braking SystemNO
Height and Swing LimitersNO
RCI Load LimiterNO
