High achiever

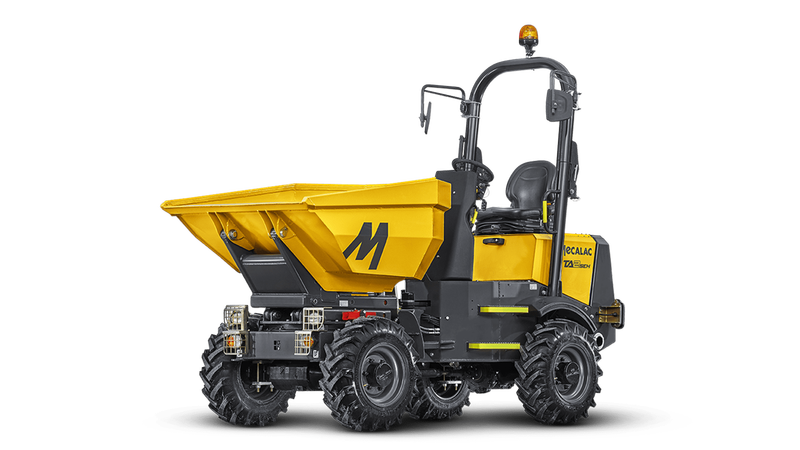

The TA2 dumper adds more performance with more payload and options like a swivel or swing elevated tip skip for more convenience in the smallest jobsites.
With a skip payload of 2000 kg (4,410 lb) and options such as 180 degree power swivel tip skip (TA2SH) or an elevating swivel tip skip (TA2SEH), the TA2 range can fit the requirements of many small jobsites. The hydrostatic transmission delivers smooth and uninterrupted power for the operator. Simple user-friendly controls help all types of operators to adapt quickly.
Specifications
Total operating weight | From 2175 kg (4795 lb) to 2295 kg (5059 lb) | |
---|---|---|
Engine power | 18.5 kW (25hp) - Stage V | |
Skip type | Swivel / Swivel Elevation | |
Payload | 2000 kg (4,410 lb) | |
Maximum skip capacity (Heaped) | 1.2 m³ (1.57yd³) | |
Transmission (Road) | Hydrostatic | |
Travel speed | 18 km/h (11 mph) | |
Operator environment | ROPS foldable bar | |
Overall width | 1473 mm (4’10”) | |
Overall length | 3606 mm (11’10”) | |
Overall height | 2928 mm (9’7’’) | |
Dumping height, skip tipped | From 993 mm (3’3”) (lowered) to 1653 mm (5’5”) (raised) |
